WDL-RBY-100 Industrial Crucible Melting Furnace for Ferrous Metals and Alloys

Meta Description:
Discover the WDL-RBL-100 industrial crucible melting furnace, designed for efficient melting of ferrous metals and low-melting alloys. Featuring electric heating, graphite crucibles, PID control, and energy-saving insulation, this furnace is ideal for foundries, laboratories, and metal casting industries.

Reliable Crucible Melting Furnace for Foundries and Metal Casting

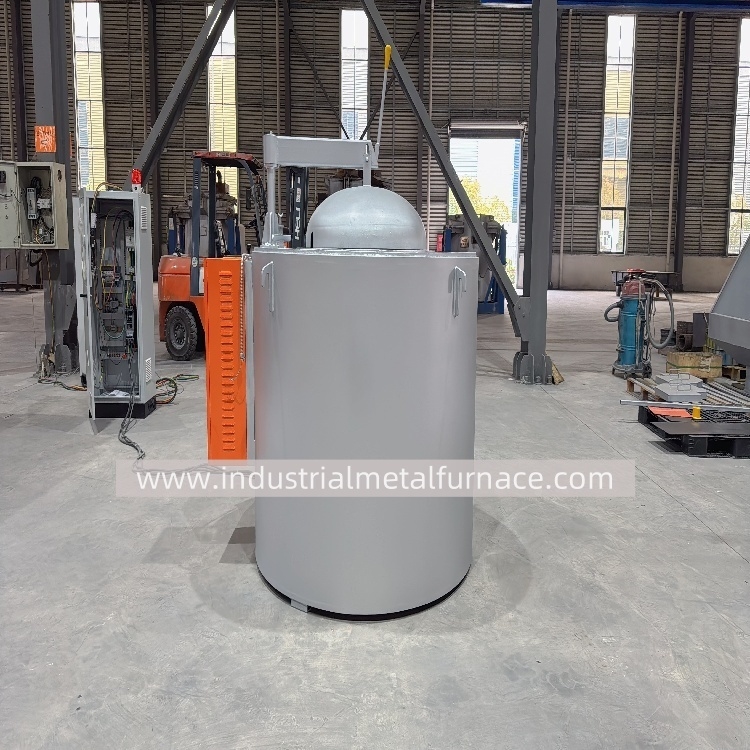

The WDL-RBL-100 crucible melting furnace is a high-performance electric furnace specifically engineered for the melting of ferrous

metals and alloys with low melting points. It is widely used in metal foundries, alloy production plants, research laboratories, and precision casting workshops.

Thanks to its robust design, energy-efficient heating system, and advanced PID temperature control, this industrial crucible furnace delivers consistent melting quality, high safety standards, and a long service life.

Furnace Structure and Key Features

The furnace body is built with high-strength steel plates and sectional steel, forming a durable cylindrical shell that ensures stable operation. Its furnace lining is carefully designed using aluminum silicate fiber blocks, lightweight refractory bricks, and vermiculite powder, providing excellent insulation and reducing energy consumption.

Heating and Temperature Control

• Equipped with OCr27A17MO2 high-resistance alloy wires, ensuring reliable heating performance.

• Dual thermocouples for precise monitoring of both furnace atmosphere and molten metal temperature.

• Thyristor-based PID control system for accurate regulation, achieving ±3℃ temperature stability.

• Automatic safety shutoff in case of over-temperature or current irregularities.

Graphite Crucible

• Uses premium Vesuvius or Gold Elephant graphite crucibles.

• Resistant to thermal shock, with a service life of 6+ months, depending on usage conditions.

Safety System

• Includes an emergency outlet hole at the furnace base to prevent leakage accidents.

• Built-in soft start-up system ensures smooth heating without power surges.

Technical Specifications of WDL-RBY-100 Crucible Furnace

Advantages of the Crucible Melting Furnace

✔ Fast melting capacity – Up to 40 kg/hour, increasing productivity for foundries and metal workshops.
✔ Energy-efficient design – High-quality insulation minimizes heat loss, reducing operational costs.
✔ Graphite crucible durability – Long service life with resistance to thermal shock and oxidation.
✔ Accurate PID temperature control – Guarantees uniform melting quality for alloys and ferrous metals.
✔ Robust safety features – Emergency outlet, power regulation, and overheat protection.

Standard Configuration

• Furnace body with refractory lining

• OCr27A17MO2 resistance wire heating system

• Electrical control cabinet with Taiwan-made temperature controllers and regulators

• Graphite crucible and cast iron press ring

• Two thermocouples (with protective casing)

• Hydraulic control system

• Technical documentation

After-Sales Service and Warranty

We provide a warranty ( 13 months from shipment) on manufacturing defects. Our after-sales support includes:

• On-site installation and training

• Quick replacement of spare parts

• 24/7 technical support hotline

• Lifetime consultation for maintenance and upgrades

Consumables such as graphite crucibles and resistance wires are not covered under warranty but are available at competitive factory prices.

Why Choose Our Crucible Melting Furnace?

With its combination of energy efficiency, precise temperature control, and durable crucible materials, the WDL-RBL-100 crucible melting furnace is one of the most reliable industrial furnaces for metal casting and alloy melting. Whether you operate a large-scale foundry or a small metalworking workshop, this electric crucible furnace ensures stable performance, reduced downtime, and high-quality melting results.
