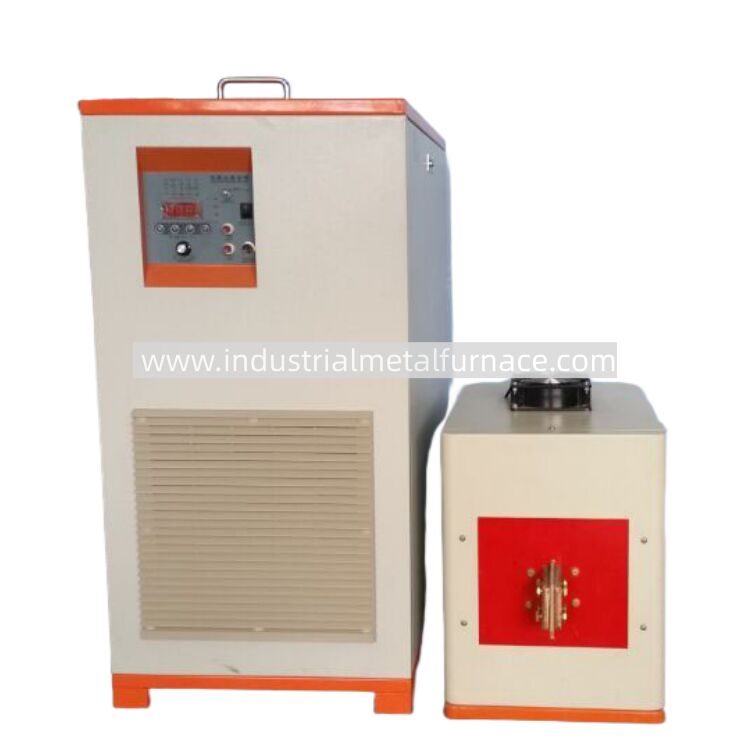

WDL-70B 70KW Medium Frequency Induction Melting Furnace for Metal Heating

Name: WDL-70B 70KW Medium Frequency Induction Melting Furnace for Metal Heating
Brand: Wuxi Wondery Industry Equipment Co., Ltd
SKU: WDL-70B
Availability: InStock

Nombre De La Marca:	WONDERY
Número De Modelo:	WDL-70B
Moq:	1 juego
Precio:	TO BE NEGOTIATED
El Tiempo De Entrega:	10 días laborables
Términos De Pago:	LC, T/T

Información Detallada

Descripción del Producto

Información Detallada

Lugar de origen:

Porcelana

Certificación:

Voltaje de entrada:

Trifásico 380V, 50/60Hz

Necesidad de agua de refrigeración:

0,2 MPa, 8 l/min

Rango de frecuencia:

30–80 kHz

Precisión de control de potencia:

± 0.5%

tipo de horno:

Calentador de inducción

potencia nominal:

70kw

Detalles de empaquetado:

caja de madera contrachapada

Capacidad de la fuente:

1000 conjuntos por año

Descripción del Producto

High-Efficiency 70KW Medium Frequency Induction Melting Furnace for Metal Heating | WDL-70B Series

Professional-Grade 70KW Medium Frequency Induction Melting Furnace – WDL-70B Series

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. offers the advanced 70KW Medium Frequency Induction Melting Furnace, model WDL-70B Series, engineered for reliable and efficient metal heating, melting, and heat treatment applications. Designed with robust IGBT power technology and proprietary converter control systems, this induction furnace ensures superior performance, energy savings, and minimal maintenance requirements.

Ideal for continuous industrial operations, the WDL-70B supports a 100% duty cycle, allowing 24/7 operation at full power without interruption. Its intelligent control system features constant current and constant power modes, along with adjustable timing functions for heating and holding cycles (0.1–99.9 seconds), ensuring precise temperature control and repeatable results.

Compact and user-friendly, the system requires only basic electricity and cooling water connections, making installation straightforward. The split-design main and sub-units are connected via a 2-meter cable, offering flexibility in workshop layout. With a total weight of just 110 kg, the furnace saves valuable floor space and simplifies maintenance.

Key Technical Parameters:

Parameter	Specification
Max Input Power	70 KW
Input Voltage	3-Phase 380V, 50/60 Hz
Frequency Range	30–80 KHz
Cooling Water Requirement	0.2 MPa, 8 L/min
Duty Cycle	100%
Heating/Hold Time Setting	0.1–99.9 seconds
Total Weight	Approx. 110 kg

This medium frequency induction heater is widely used in forging, smelting, brazing, and hardening processes. It includes three copper induction coils for versatile application across different workpiece shapes and materials. The unit also displays real-time output power, frequency, and current for easy monitoring.
